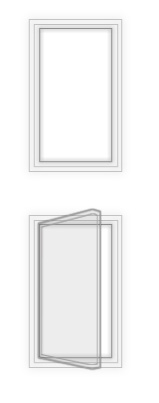

Casement

|
Global Technologies Window MFG. Ltd, frame and sash are constructed
entirely from superior UPVC compound. The frame and sash corners
are fusion welded into monolithic unit. Our window frames provide
a permanent seal against air and water penetration.
Global Technologies Window MFG. Ltd vinyl holds its glossy shine
which offers a newer and more attractive appearance and allows for
easier cleaning. Fusion welded corners together with mult-chambered
frame and sash provide for maximum durability, insulation and security.
Our solid vinyl frames won't rot or warp and are manufactured to
specifications with highest of precision. All of our windows meet
Canadian and USA standards. They are CCMC approved
and conform to CAN/CSA-A440-98
Enhanced
features provide a competitive ratio of quality to price
- Compact
and economical
- Structural
construction for larger viewing area
-
3 1/4" frame
- Built-in
1/2" Drywall Return
- Ideal
for new construction, or retrofit when
"both"quality
and economy
are priorities
Performance |
Air
Tightness
|
A3
|
Water
Resistance
|
B7
|
Wind
Load Resistance
|
C5
|
Energy
Rating (w/m2)
|
-10.80
|
Thermal
Conductivity
Energy Effeciency
37% of heat loss in most home occur through the windows!
Vinyl windows offer superior heat retention compared with many commonly used materials.
|
|
Advantages
of LoE 2


|
LoE 2 reduces summer colling costs by reflecting solar heat away from
your home, while blocking out 84% of UV radiation as an added bonus
to greatly reduce sun fading and damage to carpets.
LoE 2 significantly reduces winter heating costs by reflecting radiant
heat back into your home, reducing heat loss by up to 51% (higher
R-value). |
|
- Increased
versatility with competitive pricing
- 4
1/2" extended frame
- Structural
construction for larger viewing area or modular
- construction
for versatility
- Thermopane
is located over 25% further inside the wall than any
3 1/4"
frame
- Built-in
1/2",3/4" Drywall Return
- Brick
Molding of various types can be added
- For
new construction or retrofit; ideal when installation must be
done from the inside of the building
|
|
- The
most advanced window with the best ratio of quality to price
- 5
5/8" extended frame
- Structural
construction for larger viewing area
-
Thermopane is located over 50% further inside
the wall than any
3 1/4" frame
- Built-in
1/2", 3/4" Drywall Return
- The
Best of the Best for new construction, yet easily adapted to retrofit
applicationsg
|
|
- enhanced
features provide a competitive ratio of quality to price
- 4
1/2" extended frame
- Structural
construction for larger viewing area
- Thermopane
is located over 25% further inside the wall than any
3
1/4" frame
- Built-in
1/2", 3/4" Drywall Return
- The
perfect window for new construction, ~ yet easily adapted to retrofit
applications
|
Surface Condensation
Where surface condensation is evident it should be considered as warning sign. Each person has his or her own level of personal comfort and the amount of condensation they are willing to accept. If the occupants insist on a high level of humidity within the house, surface condensation must be expected when outside temperatures are low. An example of an indication of surface condensation is water or ice on windows.
Some humidity is necessary for comfort and health. With many houses it is a struggle to keep enough moisture inside the house and maintain an acceptable comfort level. Frequently, humidifiers are installed to add moisture to the air but their use must be controlled or surface condensation problem may result.
In some of the new homes air leakage has been controlled to such an extent that problem really is how to get rid of moisture. Yet many homeowners go on adding moisture to the air. As condensation occurs on inside window surfaces, it may be a warning signal to reduce the humidity in your residence. |
Warranty
1.
GLOBAL TECHNOLOGIES WINDOW MFG. LTD WINDOW FRAME AND SASH ARE WARRANTED
AGAINST DEFECTS IN VINYL FOR LIFE TIME FROM THE DATE OF INSTALLATION.
2. WORKMANSHIP OF GLOBAL TECHNOLOGIES WINDOW MFG. LTD PRODUCTS
IS WARRANTED FOR LIFE TIME FROM THE DATE OF THE INSTALLATION.
3. SEALED GLASS UNITS ARE WARRANTED FOR 20 YEARS AGAINST SEAL
FAILURE. |
